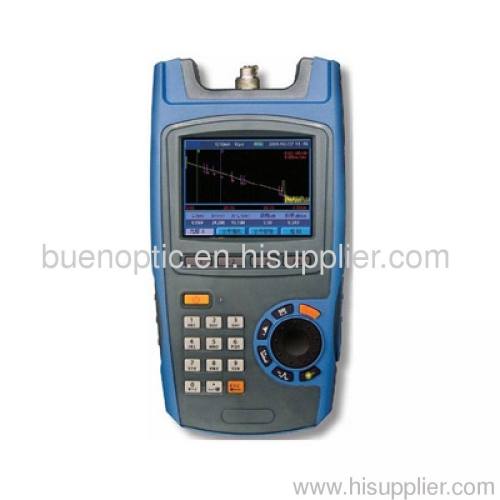

FTTX OTDR

Features
One-key operation
Shortcut key design, one- key setup
Smart portable OTDR, 4'TFT LCD display
Firm, durable, shock-proof, moisture-proof
Large storage capacity, maximum store up to 800 measurement files
Built-in lithium rechargeable battery, more than 10 hours working hours
Support USB and network interface, more convenient to manage files

Wavelength(nm)	Dynamic Range(dB)	Event Dead Zone (m)	Attenuation Dead Zone (m)
1310± 20/1550± 20	31/29	< 3m	< 25m

General Parameters

Distance range(Km)	5m-160km
Pulse width(ns)	5ns-10μ s
Measurement time	user-defined(smart link) with real-time measurement function
Distance accuracy(m)	± (0.5m ± 0.001%× range + sampling resolution)
Attenuation accuracy	± 0.01dB/dB
Loss limit(dB)	0.01dB
Loss resolution(dB)	0.001dB
Sampling resolution(m)	0.1m
Sampling points	64000
Data storage	800 item

Other Indicators

LCD type	4.0 inch TFT colorized LCD
Laser adapter	FC/PC SC/PC
Interface	USB, RJ45
Battery	built-in rechargeable Li-ion battery charging time < 4 hours working time > 10 hours
Power	AC/DC adapter input AC90-240V ± 10% output DC18V
Operating temperature	0C-40C
storage temperature	-10C-50C
relative humidity	< 80%
weight	< 1.5Kg
dimensions (mm)	247× 130× 67mm
